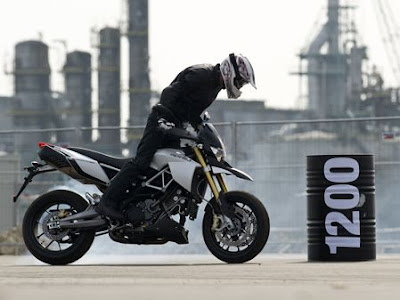

Aprilia Dorsoduro 1200 : powerful engine bike with more than 100Hp of maximum power and extreme stylish design, everything looks perfect so far.
Aprilia Dorsoduro 1200 Technical Specifications
- Engine type : Aprilia four-stroke longitudinal 90° V-twin, liquid cooled, double overhead camshafts with mixed gear/chain timing system and four valves per cylinder.
- Fuel : Unleaded petrol
- Bore and stroke : 106 x 67.8
- Total engine capacity : 1197 cc
- Compression ratio : 12.0 ± 0.5: 1
- Maximum power at crankshaft : 130 hp (96 kW) at 8,700 rpm
- Maximum torque at crankshaft : 11.7 Kgm (115 Nm) at 7,200 rpm
- Fuel system : Integrated engine management system. Injection system with triple map Ride by Wire throttle management: Sport (S), Touring (T), Rain (R)
- Ignition : Digital electronic ignition integrated with injection system
- Starter : Electric
- Exhaust system : 100% stainless steel 2-into-2 exhaust system with dual catalytic converters and oxygen sensor
- Alternator : 450 W/6000 rpm
- Lubrication : Wet sump
- Gearbox : 6 speeds, drive ratio: 14/36, 17/32, 20/30, 22/28, 23/26, 24/25
- Clutch : Multiplate wet clutch, hydraulically operated
- Primary drive : Straight cut gears, drive ratio: 40/69
- Secondary drive : Chain. Drive ratio: 16/40
- Chassis : Modular tubular steel frame fastened to aluminium side plates by high strength bolts. Removable rear aluminium subframe
- Front suspension : Diam. 43 mm Sachs upside-down front fork with fully adjustable compression and rebound damping and spring preload. Wheel travel 160 mm.
- Rear suspension : Aluminium alloy swingarm
- Piggy-back design Sachs hydraulic shock absorber with fully adjustable compression and rebound damping and spring preload. Wheel travel 155 mm.
- Brakes : Front: Dual diam. 320 mm stainless steel floating discs. Brembo four-piston radial callipers. Metal braided brake hose. / Rear: diam. 240 mm stainless steel disc. Single piston Brembo calliper. Metal braided brake hose. Two channel Continental ABS with Aprilia Traction Control (ATC) (specific version)
- Wheel rims : Aluminium alloy : Front: 3.50 X 17" Rear: 6.00 x 17"
- Tyres : Radial tubeless tyres; front: 120/70 ZR 17; rear: 180/55 ZR 17
- Dimensions : Max. length 2248 mm, Max. width 925 mm (at outer edges of hand guards), Max. height 1205 mm (at instrument panel brow), Saddle height 870 mm, Wheelbase 1528 mm, Trail 118 mm, Steering angle 27.3°
- Fuel Tank : 15 litres (including 3.5 litre reserve)
- Pics and Specs VIA : aprilia.com
